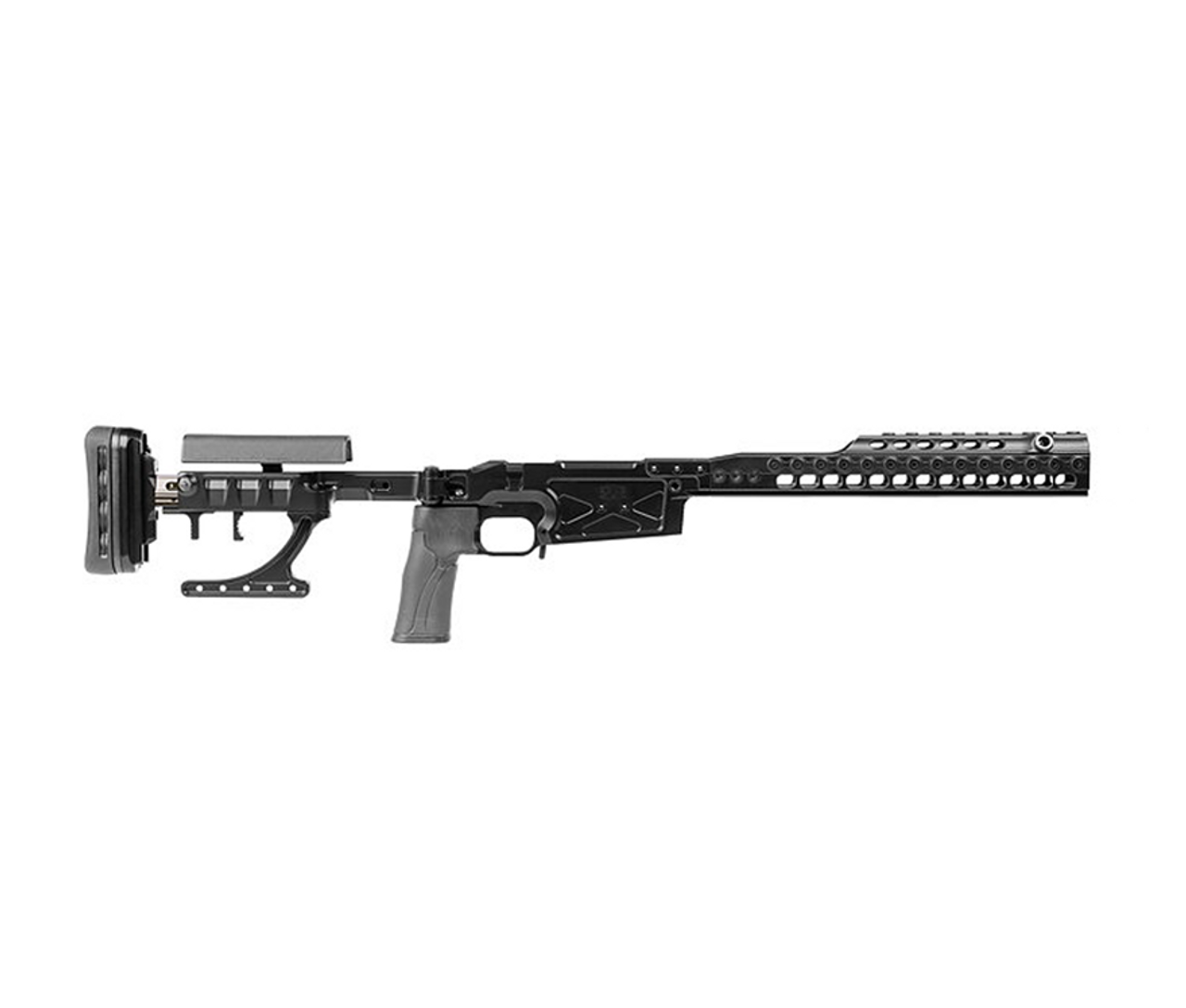

Spuhr CH000013 Spuhr Chassis Tikka T3/T3x SA, Black, 13"

13" Forend for use with suppressors. Features Spuhr Interfaces™ along the top of the forend for use with NV devices and illuminators, etc.

Specifications:
Length: 898 mm/35.4” (608 mm/24.0” folded)
LOP: 330 mm/13" (minimum)
Width: 48.5 mm/1.9”
Height: 180 mm/7.1”
Weight: 2.31 kg/5.09 lb
Forend: 329 mm/13.0”
Color: Black


The Spuhr® Ideal Chassis System™ (SICS™) is a modular chassis system, designed to provide a rigid support of the barreled action for improved accuracy. The SICS™ features:

• Aircraft grade aluminum alloy construction
• Folding stock assembly with adjustment for solid lockup
• Quick-adjustable length-of-pull (50 mm/1.97” travel) and recoil pad height (32 mm/1.25”) – toolless and without play
• Height and length-adjustable cheek piece
• Length-adjustable proprietary pistol grip (8 mm/0.32” travel, AR-compatible)
• 13” Spuhr Interface™ forend with integrated ARCA Swiss rail and QD sling cups
• AICS-pattern magwell - not for AI AX magazines
• Built-in barricade stop
• Uses original 16 mm high recoil lug (TACT A1 recoil lugs need to be replaced with standard T3x recoil lugs)

Note:

• As the Tikka T3/T3x actions have a 28 mm/1.102” front face diameter, even a straight bull barrel matching the Tikka action’s diameter will fit in the CH110 13" forend (max barrel diameter at the shank: 29 mm/1.14").
• Due to the narrow magwell in the Tikka T3/T3x actions, some plastic magazines may not seat properly without modification.
• Clearance between front of action and handguard is approximately 130 mm/5.11" and may require the use of a 38 mm/1.5" high mount.
